PULSE Mini Warning Light

General Specifications

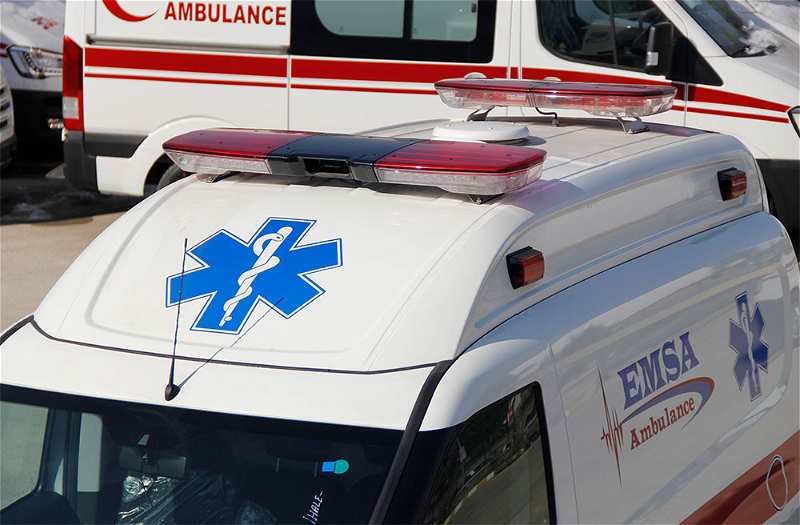

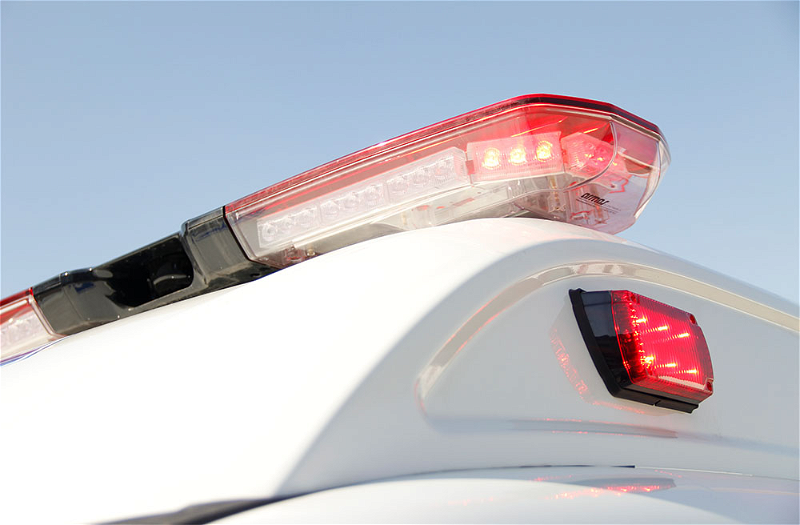

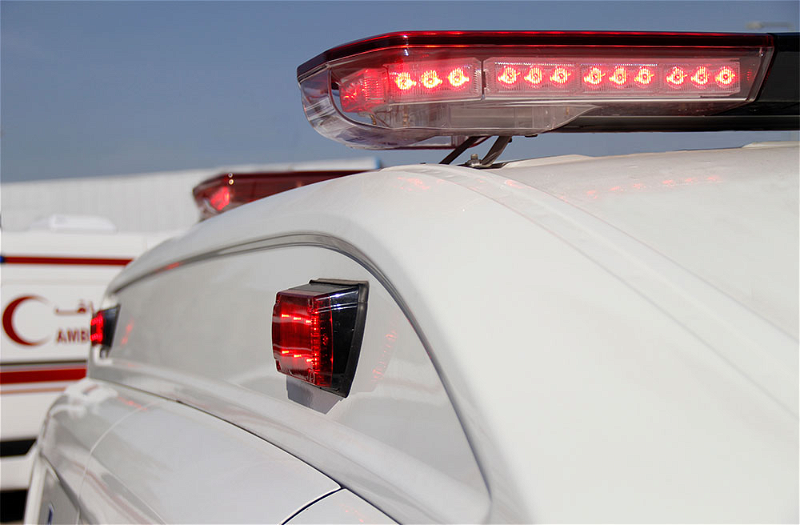

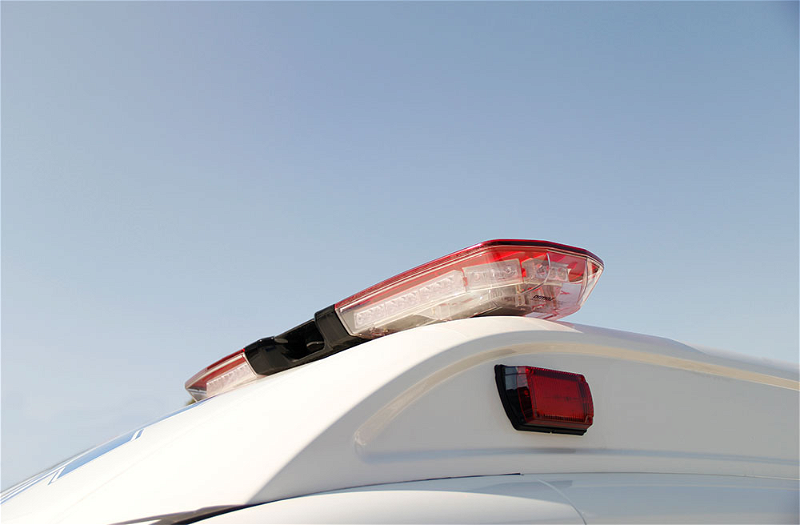

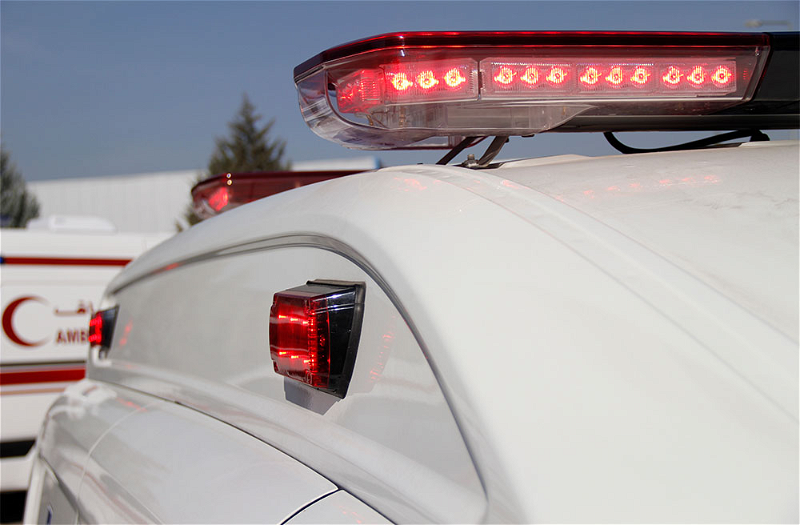

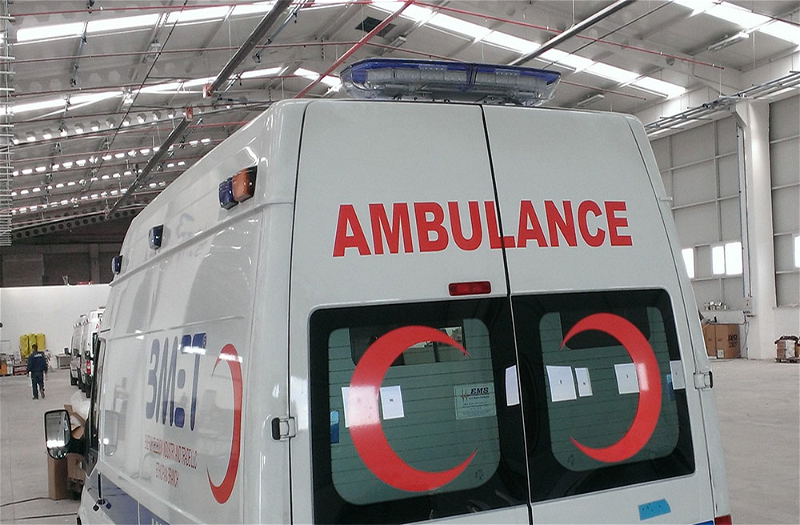

PULSE, which is mounted on the edge surfaces of emergency vehicles such as ambulance, fire brigade, construction equipment, and service vehicles such as road service vehicles, emits high warning light with its 6 LEDs in 2 rows. With its water-resistant structure, UV and impact resistant polycarbonate plastic material, it provides long-term use in difficult environmental conditions.

PULSE offers both a passive structure that can be controlled by an external electronic circuit, and an optional option with an active structure using an internal circuit. It can be used on its own, or it can work synchronously with many of its own models or with other ARMAS brand warning systems.

PULSE, which has a single color warning light in its standard, is also offered as an option to give a two-color warning.

Due to the inclination of the lower floor surface, the warning light can be issued parallel to the ground on the inclined vehicle edges.

General Features

  • High-impact LED light source
  • External or internal control circuit option
  • Variety of interchangeable flash modes
  • Synchronous operation with different warning systems
  • Manual light intensity reduction feature
  • Color Options
  • Two-color usage option
  • Waterproof and resistant to harsh environmental conditions
  • Sloped ground
Technical Details
  • 12-24VDC operating voltage
  • 6 x 3W LEDs (Contact for alternatives)
  • UV and impact resistant polycarbonate plastic chamber

Standards

  • ECER65, ECER10, EMC, IP65 with appropriate configurations

Color Options

  • Red, blue, amber, green and white LED color options
  • Red, blue, amber, green and transparent optical plastic chamber color options
  • Standard black, white and chrome-plated optional ground color

Complementary Parts

  • External LED Control Unit
  • REM-02 Control unit

Size

  • Length : 17,6 cm
  • Width: 7,7 cm
  • Height : 5 cm
