NAM-19 Evidence Class Professional Breath Alcohol Tester

General Specifications

With its specially designed new generation electrochemical sensor, NAM-19 is a life-saving, technological alcohol measuring device that has been certified as an evidence class by measuring with extremely high accuracy and sensitivity.

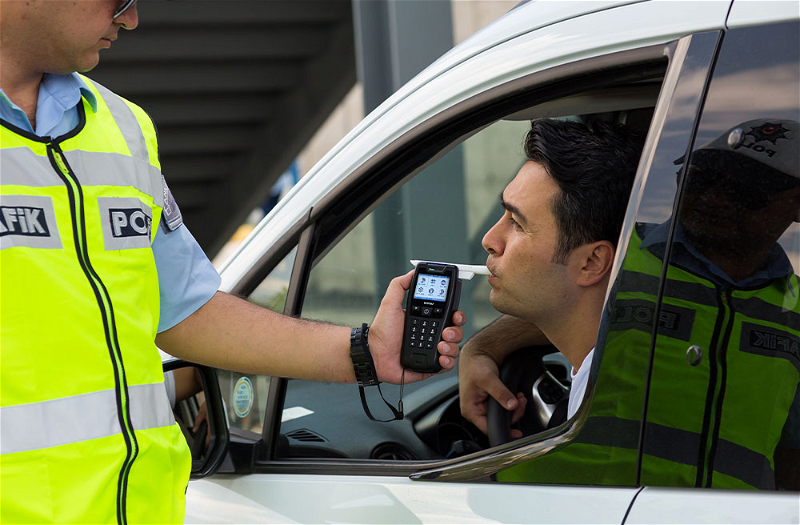

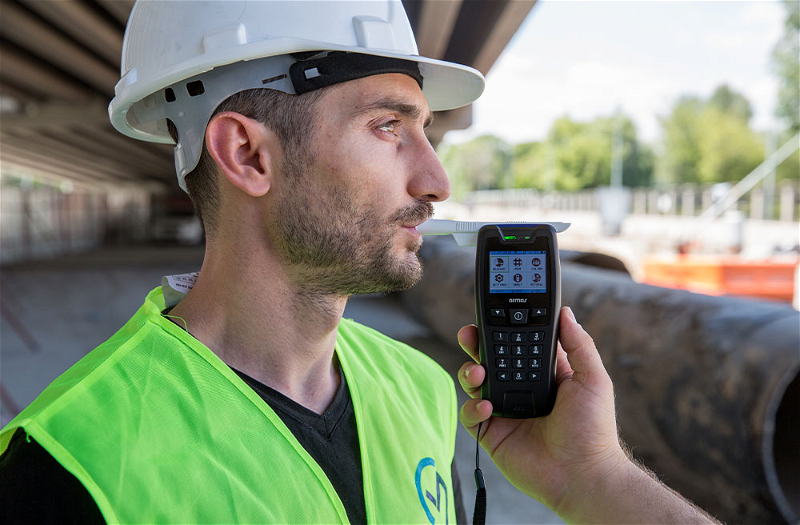

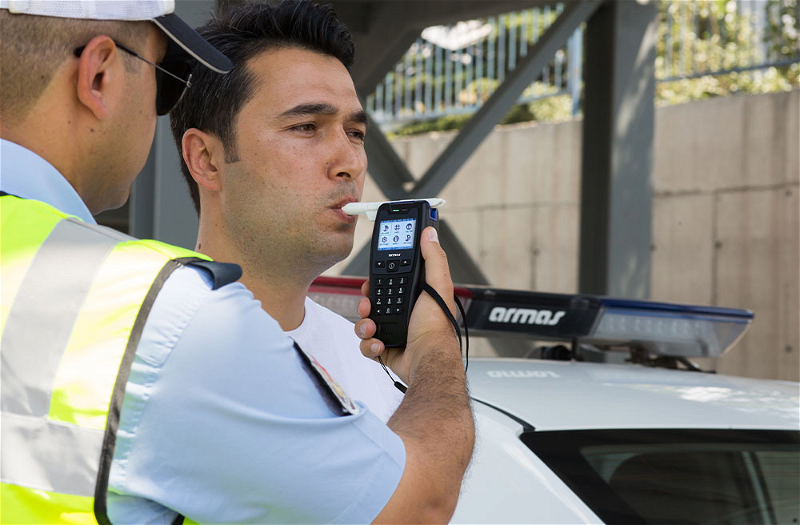

NAM-19 Breathalyzer can be used reliably at every point that requires road, life, property and work safety such as roadside traffic controls, law enforcement officers' security controls, workplaces, transportation.

Evidence Class Measurement Accuracy

NAM-19, produced using a specially developed new generation electrochemical sensor technology, provides sensitive, accurate and reliable results and meets the requirements of international standards, and is an accepted alcohol meter in the evidence class.

Measurement Modes That Enable Use Under All Conditions

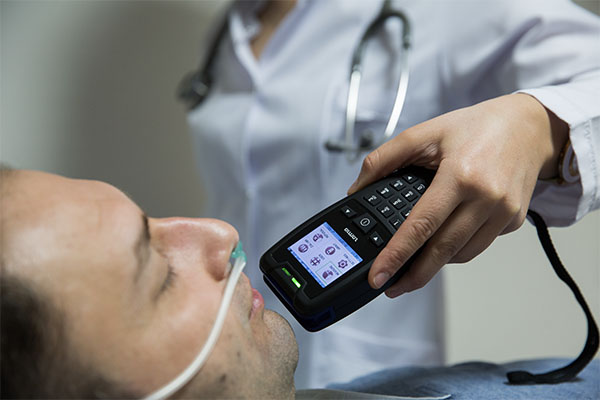

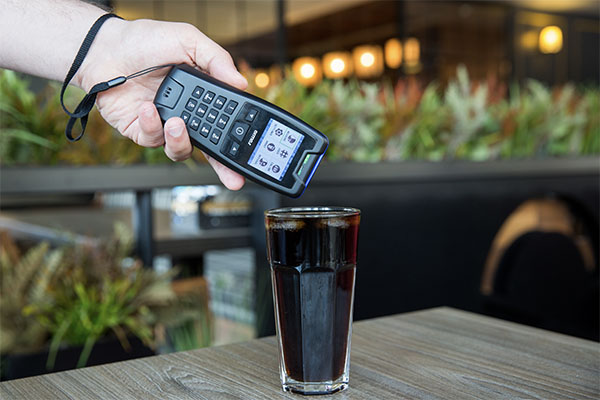

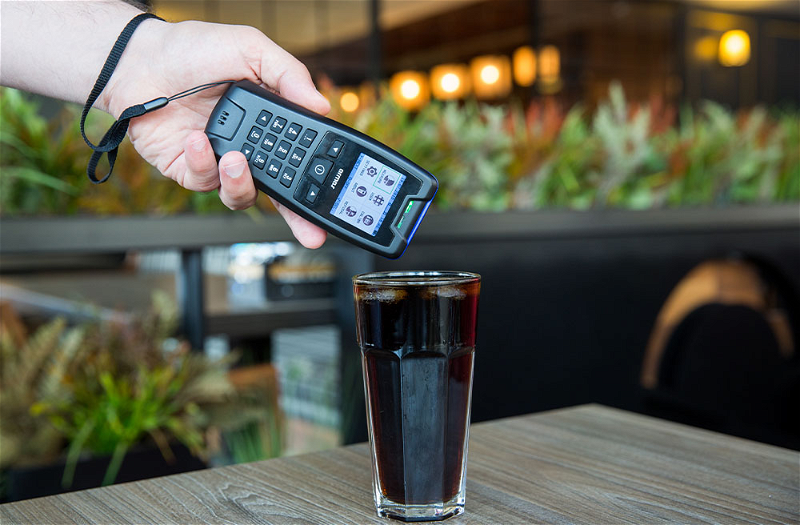

NAM-19 Breathalyzer allows measurement in any situation with Automatic / Active, Manual, Passive and Measurement rejection modes. Apart from automatic measurement, the NAM-19 Alcoholmeter, which can make manual measurements in case of shortness of breath, can also make ambient measurements with its passive measurement mode. Those who do not want to have a measurement with the Measurement Rejection mode can be registered.

Nam 19 Delil Sınıfı Alkolmetre
Nam 19 Delil Sınıfı Alkolmetre
Nam 19 Delil Sınıfı Alkolmetre
Nam 19 Delil Sınıfı Alkolmetre

User Friendly Design

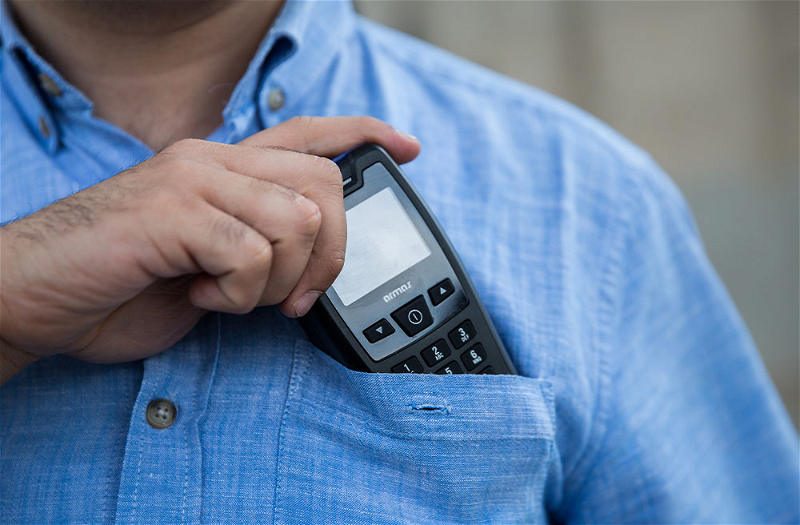

Unlike other breathalyzers, it is suitable for use under the sun, thanks to its alphanumeric keypad, quick use with the shortcut 3-key, small size and transreflective TFT screen. It is completely user-friendly with the language option suitable for each country and the menu structure that guides the user, warning and error messages.

Data Input, Storage and High-Capacity Memory

In NAM-19 Alcoholmeter, the data entered through the alphanumeric keypad suitable for day and night use and the measurement results are saved in the device memory. It is possible to scan the pre-recorded data in the memory, display the found data on the screen and report it via a printer if desired. The recorded data can be transferred to the computer via NAM-DATAPro software.

Disposable Hygienic Mouthpiece and Passive Mouthpiece for Non-Contact Measurement

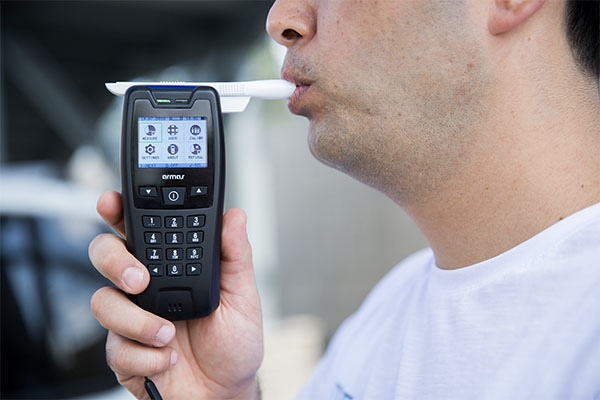

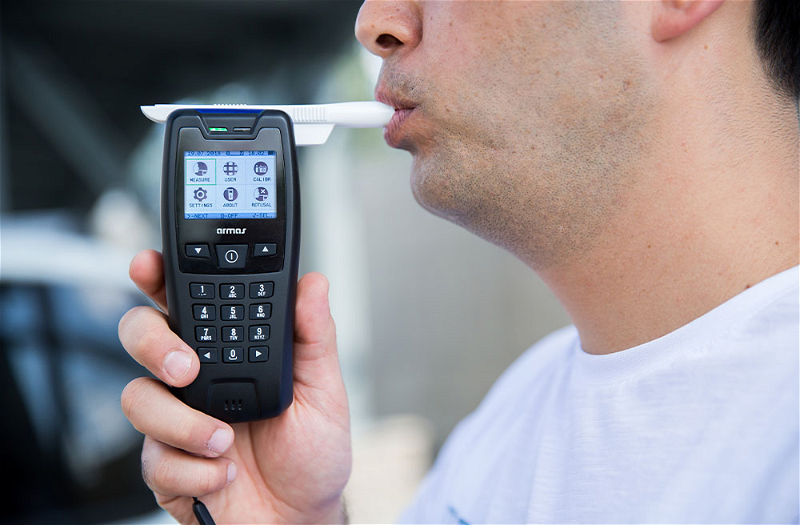

Measurements are made easily thanks to the individually packaged hygienic mouthpiece specially designed for the NAM-19 breathalyzer, which can be easily worn by left-right handed users. The breath outlet of the NAM-19 breathalyzer mouthpiece is directed in a different direction so that the breath, saliva and food residues of the blower do not go to the other person.

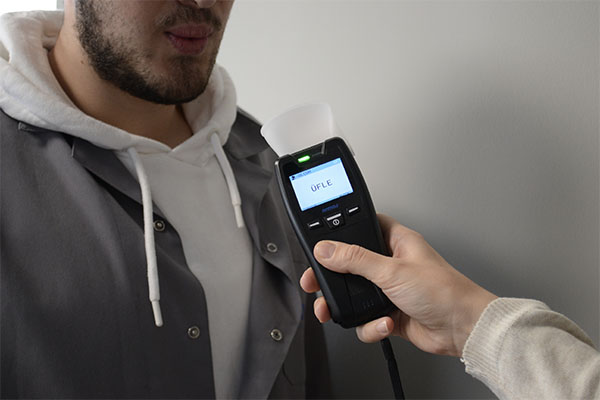

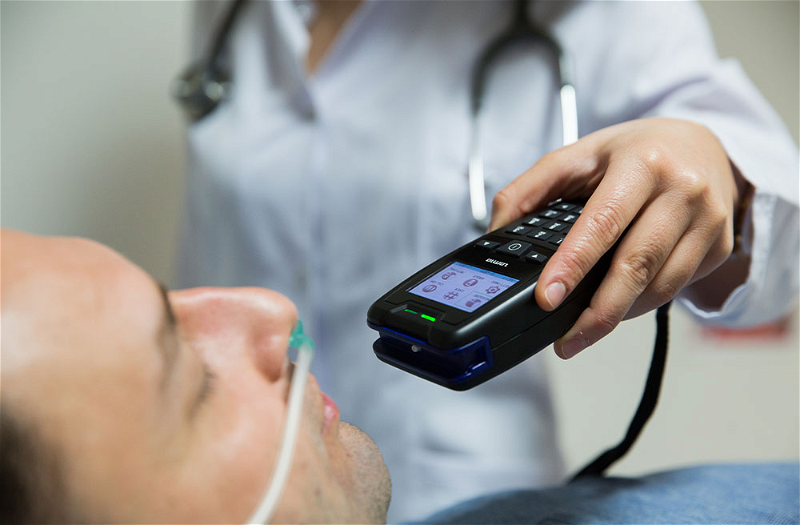

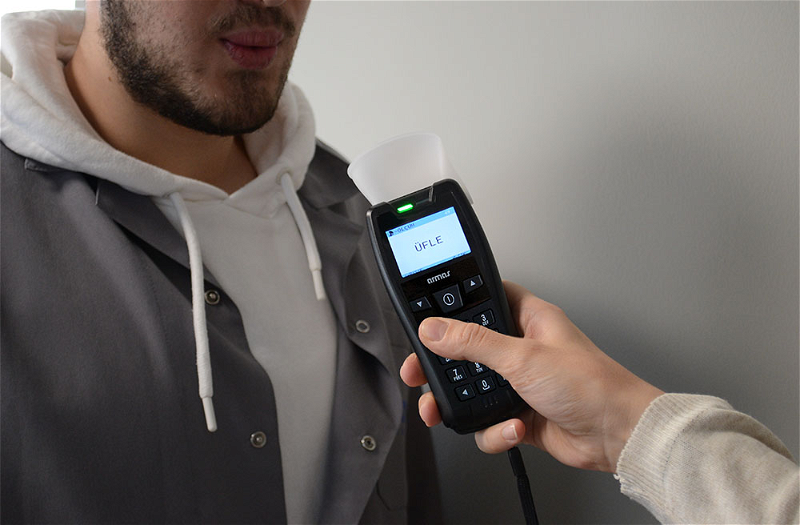

NAM-19 Alcoholmeter, which optionally offers a passive measuring cup for non-contact measurement, can also be used in different sectors and for fast measurements.

Nam 19 Delil Sınıfı Alkolmetre
Nam 19 Delil Sınıfı Alkolmetre
Nam 19 Delil Sınıfı Alkolmetre
Technical Details

Sensor

New Generation Electrochemical Fuel Cell with High Precision

Mouthpiece

- Disposable mouthpiece
(hygienic rules were followed in production and packaging)

- Passive cup (optional)

Measurement Mode

Auto / Manual / Passive / Measurement Refusal

Measurement Range

0.00 – 6.00‰ (promille) BAC range

Preparation Time

-  After the device is turned on: up to 5 seconds

Displaying Result

- In the presence of alcohol, no more than 15 seconds after sampling

- No alcohol, immediately

Operating Temperature

-10°C to +50°C

Storage Temperature

-20°C to +60°C

Minimum Volume

min. 1.2L (changeable)

Blowing Time

Up to 6 sec.

Measurement Unit

Promille (w/v) as standard. However, it can be set to any valid measurement unit in the world.

Automatic shutdown time

Adjustable

Energy Conservation Mode

- Automatically reducing the screen light in case of short-term standby

- Switching to standby mode

Screen

Sun-visible transreflective type color TFT Display

Memory

7.500 as standard, up to 100.000 depending on data input

Data input

Alphanumeric keypad

GPS

Yes (optional)

Calibaration

Dry gas and / or vapor

Battery

Standard 3.7V Lithium-ion
(optional Alkaline ve Ni-Mh battery)

Battery Charge

Wired and optional desk type via the device
(both breathalyzer and printer charging together)

Charging Adapter

220V AC city power, optional car cigarette lighter plug
(12V DC or 24V DC)

Printer

Bluetooth Thermal Printer (optional)

Protection Case

Silicone (optional)

Language Options

Turkish, English, Spanish, Russian, Croatian
(Contact for other languages)

Data transfer/archive

With NAM-DATAPro software and PC connection cable (optional)

Certificates

-    DOT/NHTSA Evidence Class
-    EN15964
-    EN60068-2-2 Shock
-    EN60068-2-27 Vibration
-    CE (EMC, LVD)

Carrying case

Large type (for models with printer), small type (for models without printer)
