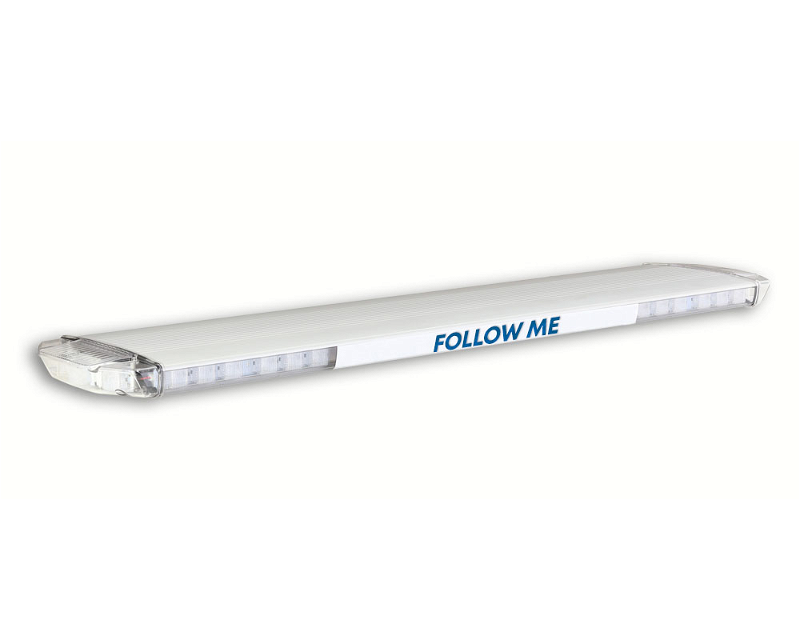

FLARE-MS Lightbar with Illuminated Sign

General Specifications

FLARE is the first lightbar in its sector to receive the globally recognized RedDOT Design Award with its slim and unique design. Despite its thin structure, in addition to its powerful LEDs and specially designed lenses, it emits wide warning light with its asymmetrically designed plastic chamber structure and can give 360 degrees uninterrupted warning. The FLARE-MS Lightbar with Text Message is designed with the message area created for writing in the middle part of the FLARE and the backlighting of this area.

With its monoblock aluminum body, it is resistant to high impacts and speeds, and with its UV and impact resistant polycarbonate plastic container, it is durable enough to be used for years in extreme environmental conditions.

Warning Light Feature

With the LED light sources placed together with the specially designed lens structure, it can give a light warning in various flash modes during access to the scene, and low-intensity cruising light modes can be used during the patrol. FLARE-MS lightbar, which can give 360 degrees uninterrupted warning, has warning, traffic direction, cruise mode and functions.

Area Lighting Feature

Left-right street lighting can be made with fixed-lit LEDs placed in the edge areas, and front-rear fixed area lighting can be made with LEDs to be placed in the front and rear.

Automatic Light Intensity Adjustment

Thanks to the optional sensor in the FLARE-MS Lightbar, the light intensity can be reduced automatically in the dark.

Message Text

The text to be seen in the area created in the middle of the FLARE-MS lightbar is written in the form of text with foils resistant to outdoor conditions. The area where the message is written is optionally illuminated from the inside and the message can be broadcast in the dark at night. In this section, as well as a message can be written, elements such as a brand logo, company title, sign-symbol can also be written. The length of the message area can be changed according to the request and the length of the lightbar.

General Specifications

  • High strength with thin design and monoblock aluminum body
  • Flash mode switching feature
  • Cruise mode (cruise light), traffic advisor and warning feature
  • Area lighting with left-right alley light and front-rear projector options
  • Automatic light intensity adjustment with optional day/night sensor
  • Ability to turn off the rear LED modules
  • Middle text lighting LEDs and optional text writing
  • Size options according to the purpose of use and vehicle structure
  • Color and number of LEDs options
  • Ability to perform maintenance-repair without removing it from the vehicle roof
  • Long lifetime with UV and impact resistant polycarbonate plastic material
Technical Details
  • 12-24VDC operating voltage
  • UV and impact resistant polycarbonate plastic chamber
  • Aluminum body
  • Foil floor resistant to outdoor conditions and text in the desired color
  • -40°C/+70°C

Standards

  • ECER65, ECER10, EMC, IP65 with appropriate configurations

Color Options

  • Red, blue, amber, green and white LED color options
  • Red, blue, amber, green and clear plastic chamber color options

Mounting Features

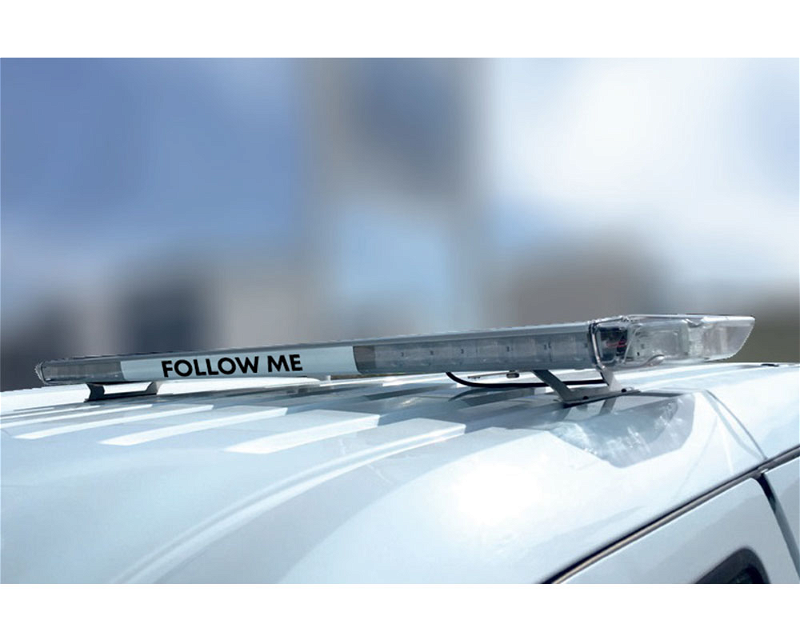

  • Mounting without drilling the vehicle with clamp mounts
  • Screw mounting on the vehicle
  • Stainless or painted mounting parts
  • Detachable structure with ceiling connector
  • Magnetic mobile use

Size Options

  • Length: 51cm / 61cm / 81cm / 110cm / 114cm / 123cm / 145cm / 160cm / 180cm / 210cm (Contact for different length options)
  • Width: 30cm
  • Height: 8.5 cm
